Access Control Lists (ACL)

Access Control Lists (ACL)#

Access control lists (ACLs) restrict what options are visible or selectable in ticket screens — queues, states, priorities, dynamic field values, and frontend actions. Each ACL defines a set of conditions to match and a set of changes to apply when those conditions are met. ACLs are evaluated in sequence; the first matching ACL applies its changes, and evaluation continues unless Stop after match is enabled.

Note

ACLs do not apply to the Superuser account (UserID 1).

Managing ACLs#

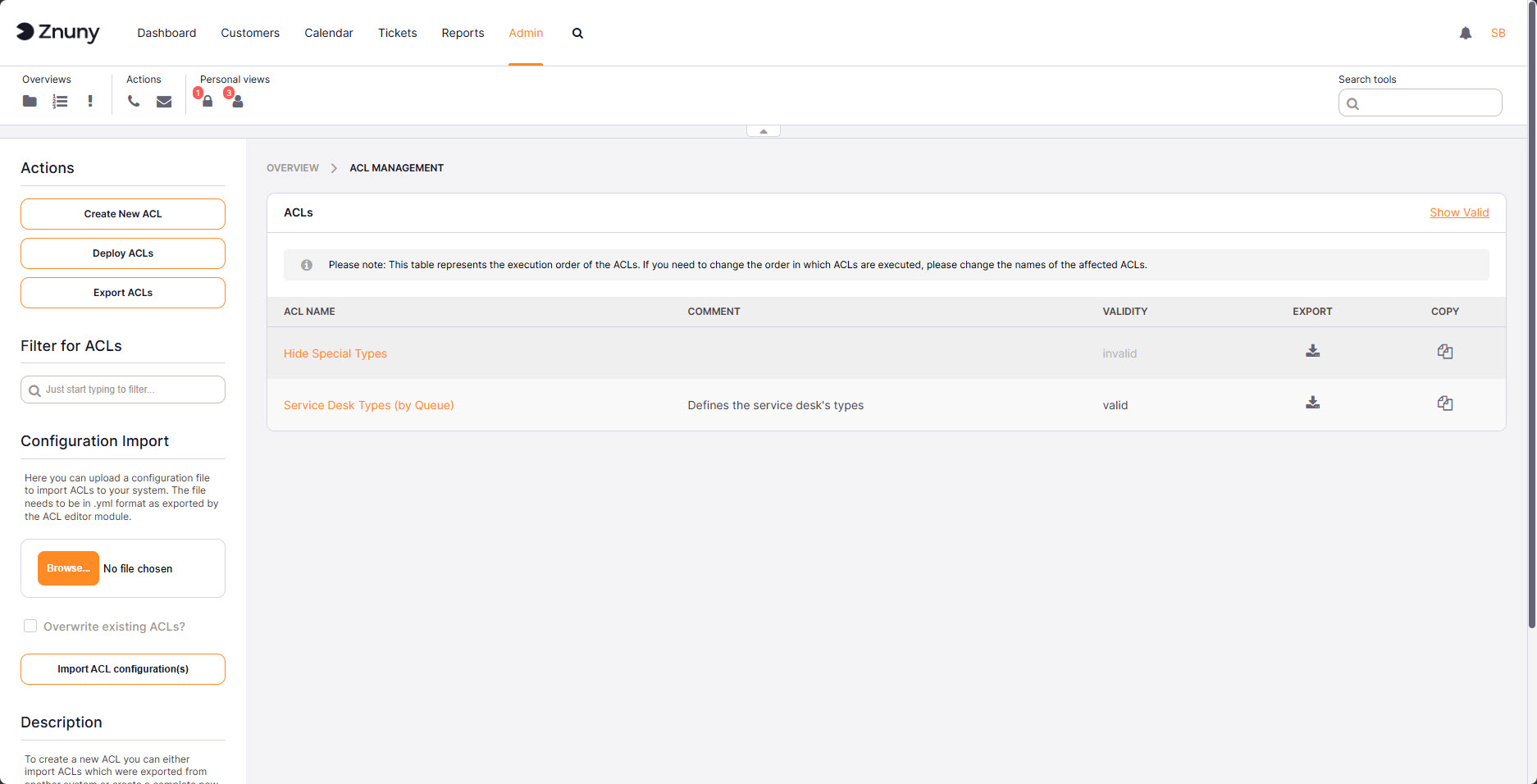

The ACL overview lists all configured ACLs with their name, validity status, and available actions (edit, copy, export, delete). When any ACL has been created or modified but not yet deployed, a Notification appears on the right side of the screen prompting you to deploy. You can also trigger deployment at any time using the Deploy ACLs button in the ACL overview.

Use the Create New ACL button to create a new ACL, or Export ACLs to download a YAML file containing every ACL in the system.

Creating and Editing an ACL#

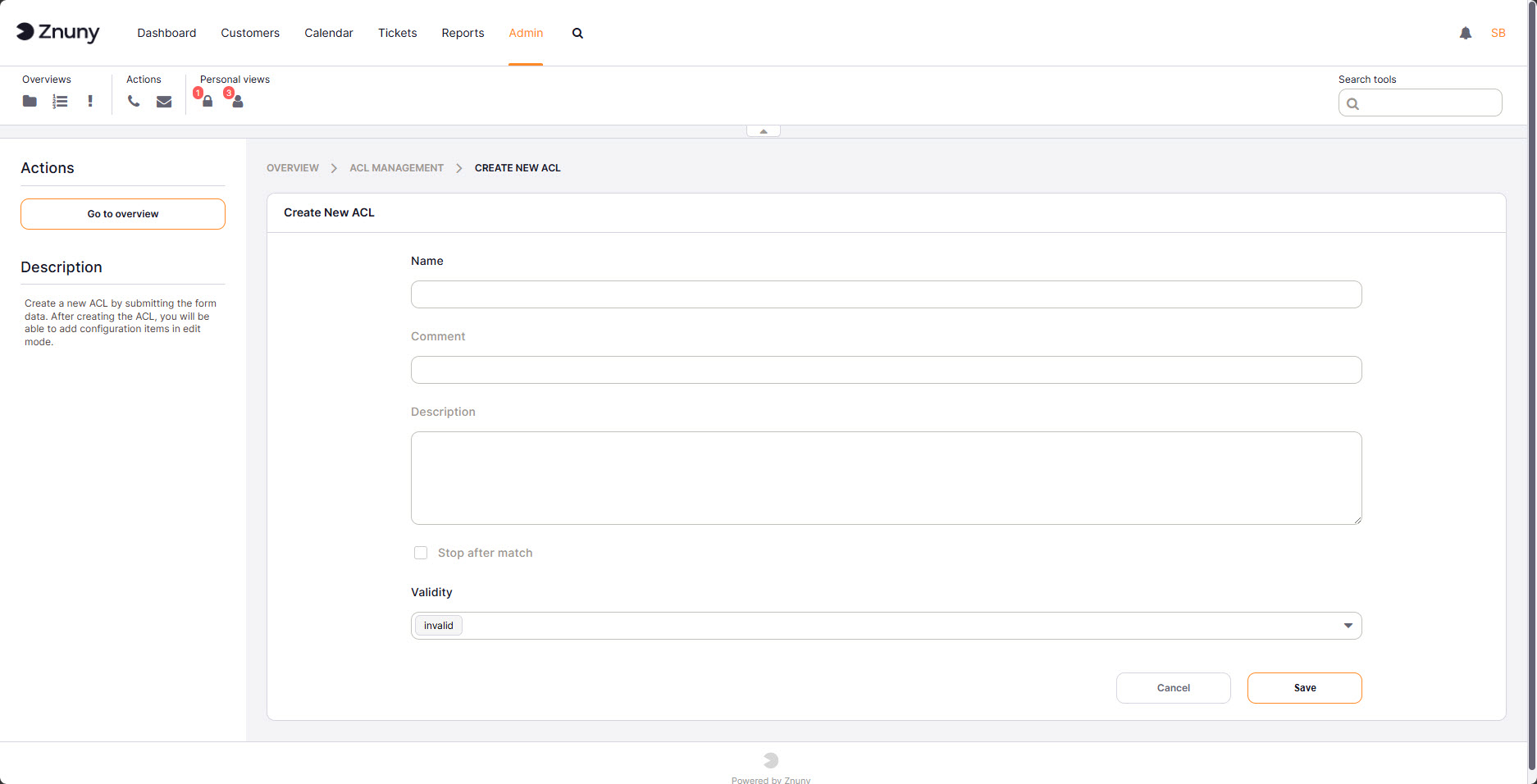

General Settings#

Each ACL has the following fields:

Field	Description
Name	Unique identifier for this ACL. Used in YAML exports and log messages. Required.
Comment	Short internal note (up to 70 characters). Optional.
Description	Longer explanation of the ACL’s purpose (up to 200 characters). Optional.
Validity	Controls whether the ACL is active. Set to Invalid before deleting an ACL.
Stop after match	When enabled, no further ACLs are evaluated once this ACL matches. Useful for explicit allow/deny rules at the end of a sequence.

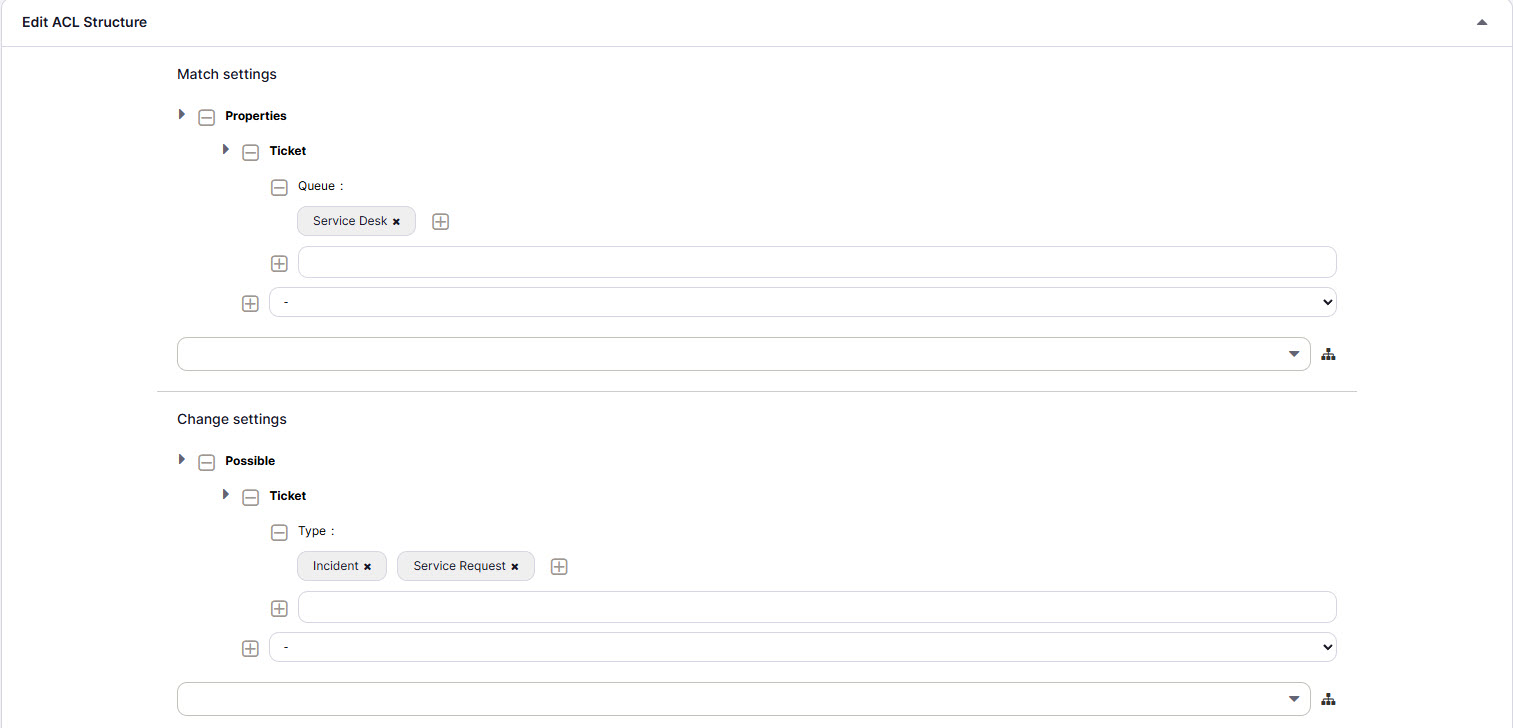

Match settings#

Match settings define when an ACL applies. The tree builder has four levels:

Level 1 — Source: Choose where the values are read from.
- Properties — matches values held in the current browser session (what the user sees on screen right now).
- PropertiesDatabase — matches values stored in the database (the ticket as last saved).
Both sources can be combined in a single ACL.
Level 2 — Category: The type of object to inspect — for example Ticket, Queue, CustomerUser, or DynamicField.
Level 3 — Attribute: The specific field within that category — for example State, Priority, or DynamicField_MyField.

Level 4 — Value: The value to match. Values support optional prefixes for advanced matching:

Prefix	Meaning
(none)	Exact match (case-sensitive)
`[Not]`	Exact match, negated
`[RegExp]`	Regular expression, case-sensitive
`[regexp]`	Regular expression, case-insensitive
`[NotRegExp]`	Regular expression, negated, case-sensitive
`[Notregexp]`	Regular expression, negated, case-insensitive

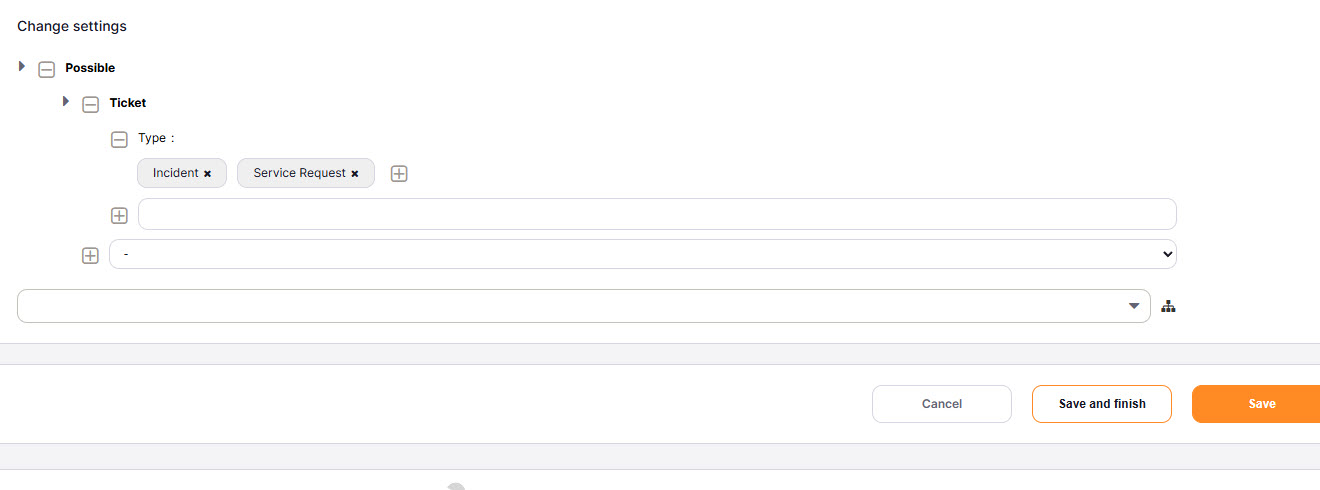

Change settings#

Change settings define what the ACL does when it matches. The tree builder works the same way as match settings (Level 1–4), but Level 1 offers three action types:

Possible — white-list. Only the values listed here remain available for selection. All others are hidden.
PossibleNot — black-list. The values listed here are removed from the available set. Everything else remains.
PossibleAdd — extend. Adds values that would not normally appear in the current set.

Multiple action types can be combined within one ACL.

Deploying ACLs#

Saved ACLs are not active until they are deployed. Deployment writes all ACLs from the database into Kernel/Config/Files/ZZZACL.pm, which the system reads at runtime.

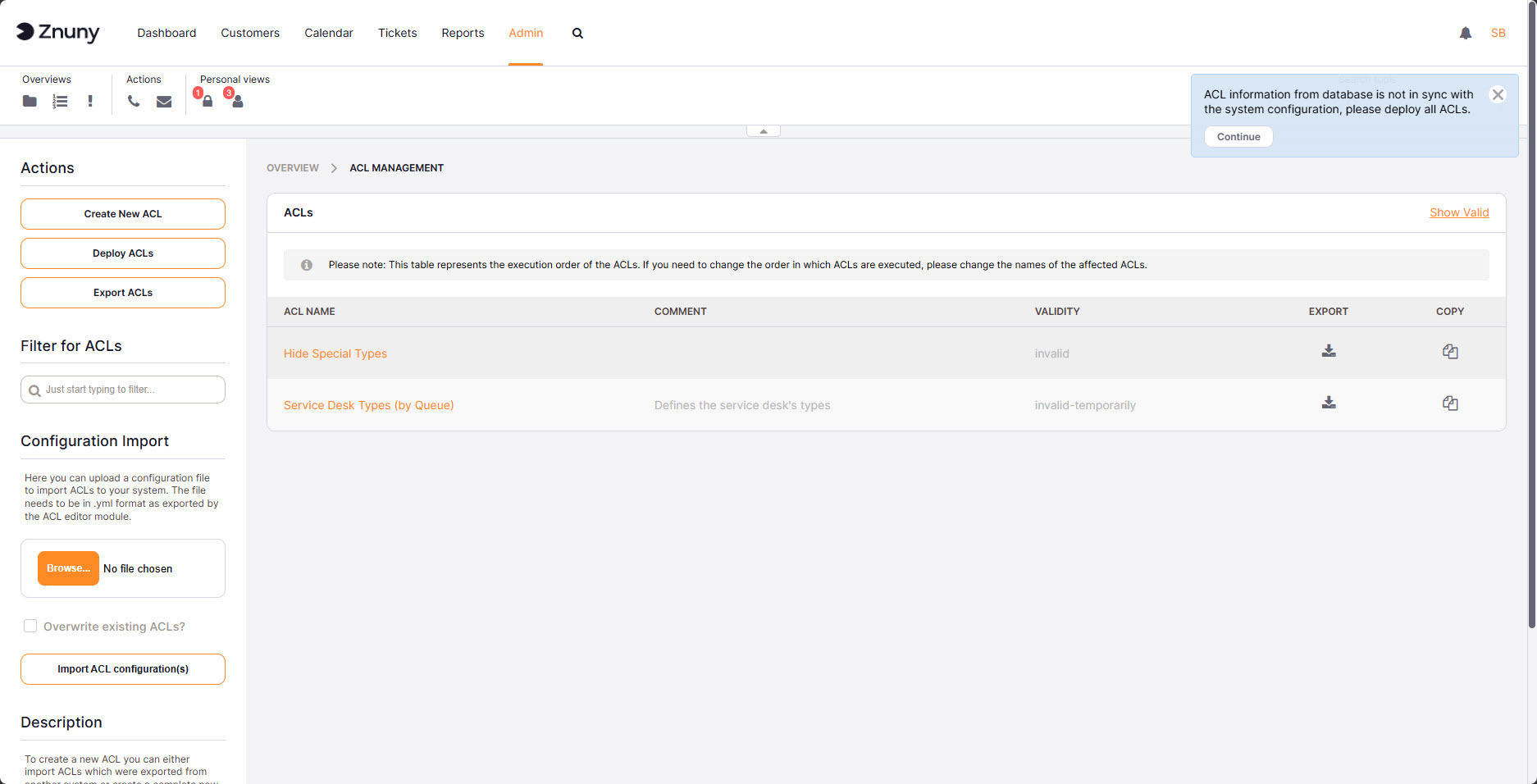

When saved ACLs differ from the last deployed version, a Notification appears on the right side of the screen. Click Continue in the Notification or Deploy ACLs in the ACL overview to synchronise.

Important

Deploy after every create, edit, or delete operation. A saved but undeployed change has no effect on the running system.

Copying and Deleting ACLs#

Copy creates a duplicate ACL named <original> (copy N). For example:

Copying Restrict-Queues produces Restrict-Queues (copy) 1
Copying Restrict-Queues (copy) 1 produces Restrict-Queues (copy) 1 (copy) 2

Always copy from the original ACL, not from an existing copy, to avoid compounding suffixes. After copying, rename the new ACL before making changes.

Delete Invalid ACL is only available when the ACL’s validity is set to Invalid or Temporarily Invalid. If the button is not shown, set validity to Invalid first, save, then return to delete.

Importing and Exporting ACLs#

Export ACLs downloads a YAML file containing every ACL in the system. Use the Export icon on an individual row to export a single ACL. The exported file is human-readable, suitable for version control, and can be imported into another Znuny instance.

Import ACL configuration(s) uploads a YAML file produced by an export. The Overwrite existing ACLs? checkbox controls behaviour when an imported ACL has the same name as an existing one:

Checked — the existing ACL is replaced.
Unchecked — the existing ACL is left unchanged and the import is skipped for that entry.
