Email Filtering

Email Filtering#

Overview#

The administration module, PostMaster Filters allows administrators to automate email processing by defining rules for incoming messages. This helps in organizing tickets, filtering unnecessary emails, and setting other various details on tickets as required.

This guide explains how to add, search, and manage PostMaster filters effectively.

Accessing PostMaster Filter Management#

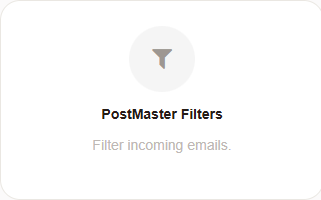

../../../_images/postmaster_filter_admin.png

Admin Module PostMaster Filters#

  1. Log in to Znuny.

  2. Click on “Admin” in the top navigation menu.

  3. Navigate to PostMaster Filters.

Adding a New PostMaster Filter#

To create a new filter that processes incoming emails based on specific criteria:

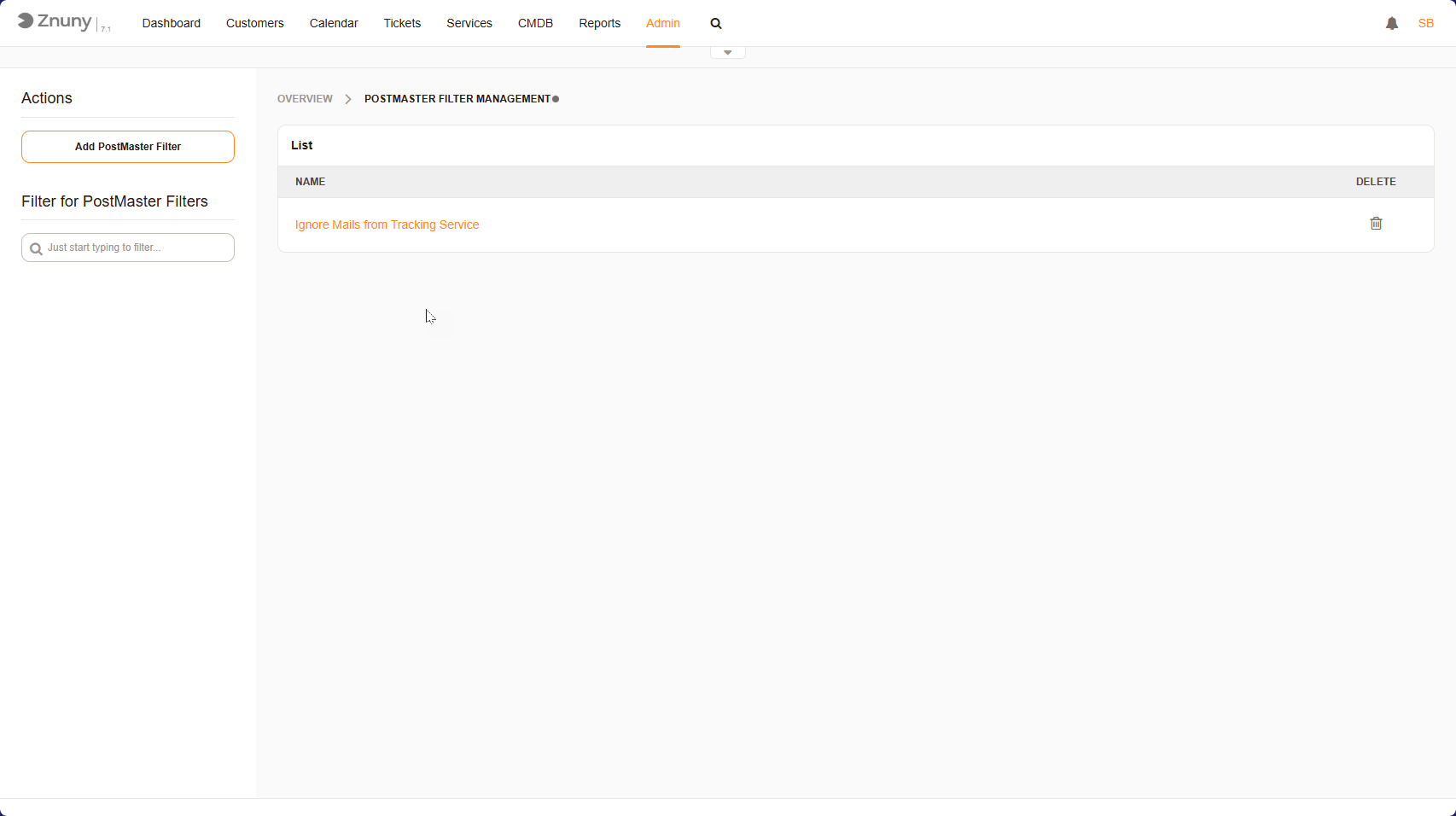

../../../_images/postmaster_filter_overview.PNG

PostMaster Filter Overview#

  1. Click the “Add PostMaster Filter” button in the left panel.

  2. Configure the filter settings:

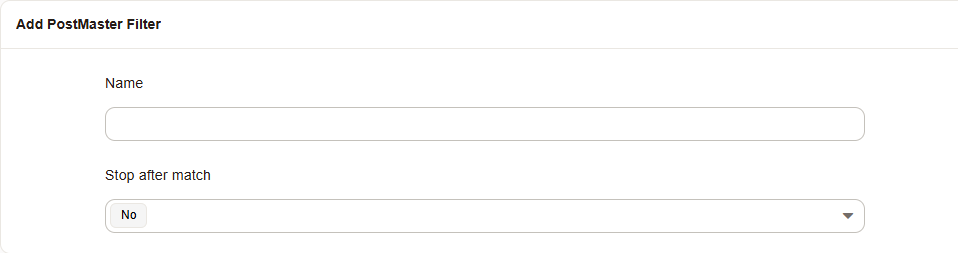

../../../_images/postmaster_filter_add_general.png

General Settings#

Name

Name of the filter

Stop after match

Set this to ensure no other filter matches.

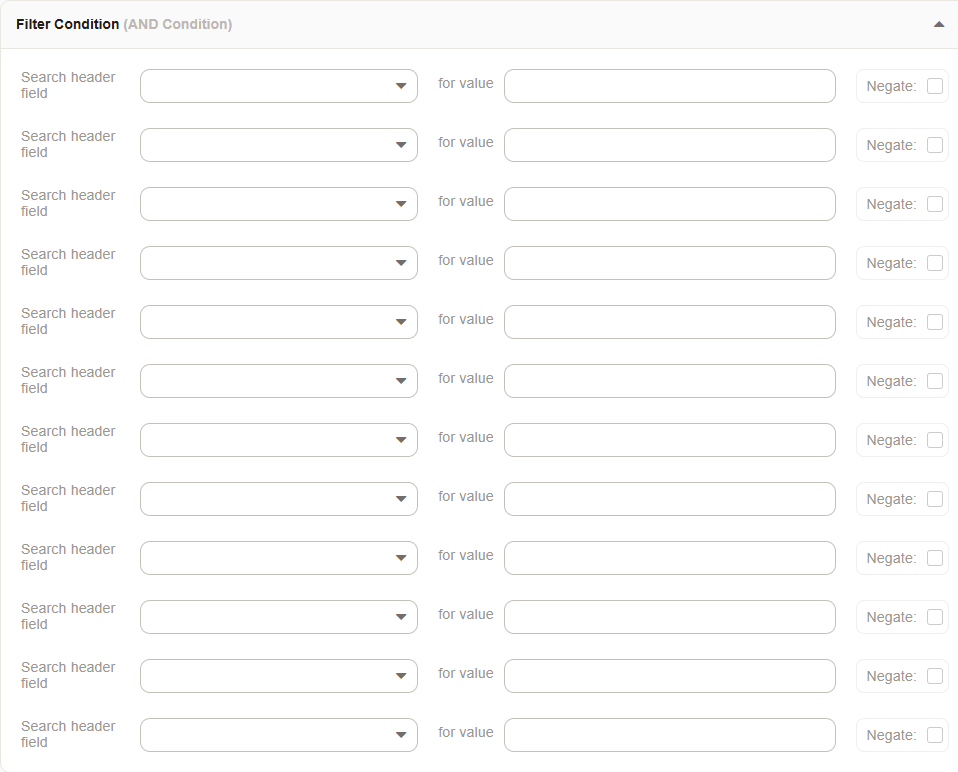

../../../_images/postmaster_filter_add_filter_headers.png

Filter Settings#

Search header field

Select the header to evaluate.

Value

A regular expression value to match

Negate

Select the checkbox to negate the filter.

Note

All headers are AND connected, and with the exception of the Body Header, should only be used once.

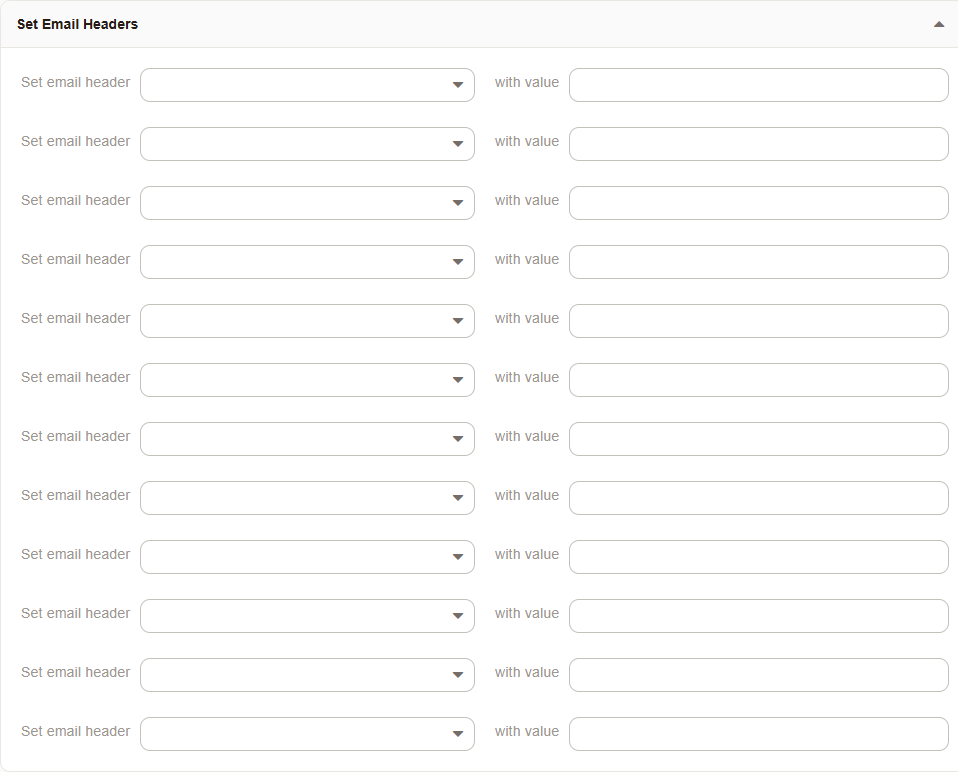

../../../_images/postmaster_filter_add_update_headers.png

Header Settings#

Set email header

The header which should be set.

Value

The value for the header.

Note

Value can be the value of a named or single matching group, or any text value.

  1. Click “Save” to apply the filter.

Additional Value Handling#

Capture an email address

If you want to match only the email address, use EMAILADDRESS:info@example.com in From, To or Cc.

Value Matching

You can use the matching group value i. e. (term) as the Set email header value by adding this [***].

Named Groups

You can also use named captures (?<name>) and use the names as the Value of any field. like this: [**\name**]

Note

Using EMAILADDRESS avoids having to parse around the Real Name (e.d. “Max Musterman” <mmuster@example.com>) and directly address the email address. It also avoids the localpart being overriden and matches the localpart exclusively. Otherwise your regular expression must perform this part properly.

Filtering for a PostMaster Filter#

  • Use the filter bar in the left panel to quickly locate a filter by typing its name.

  • Results will automatically update as you type.

Managing Existing Filters#

  • Viewing Filters: - The main table lists all created filters. - Clicking on a filter name allows you to edit its settings.

  • Deleting Filters: - Click the trash bin icon next to a filter to remove it. - A confirmation prompt may appear before deletion.

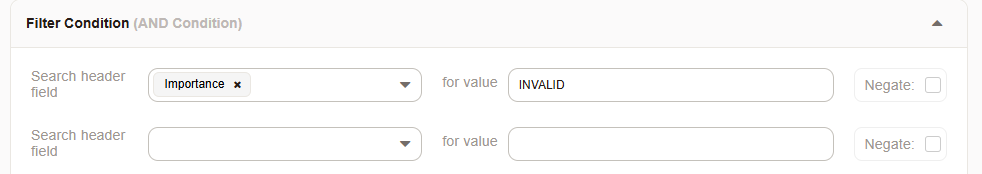

Important

The filter entity has no valid type. To invalidate a filter, choose an invalid key or filter when editing it, so that it will not match.

../../../_images/postmaster_edit_invalid.PNG

Example Use Case: Ignoring Automated Emails#

ignoring automated emails that do not require a ticket. For example, a filter named “Ignore Mails from Tracking Service”:

Search header field: From:

Value: tracker@example.com

Set email header: X-OTRS-Ignore

Value: 1

These mails will be logged to the communication log, but not create a ticket and be deleted immediately.

Best Practices#

  • Keep filter names numbered (000-ignore junk) for easy identification and correct firing order.

  • Regularly review filters to ensure they are still relevant.

  • Use specific conditions to avoid filtering important emails by mistake.

Additional Information#

For a list of all available headers see E-Mail Headers.
